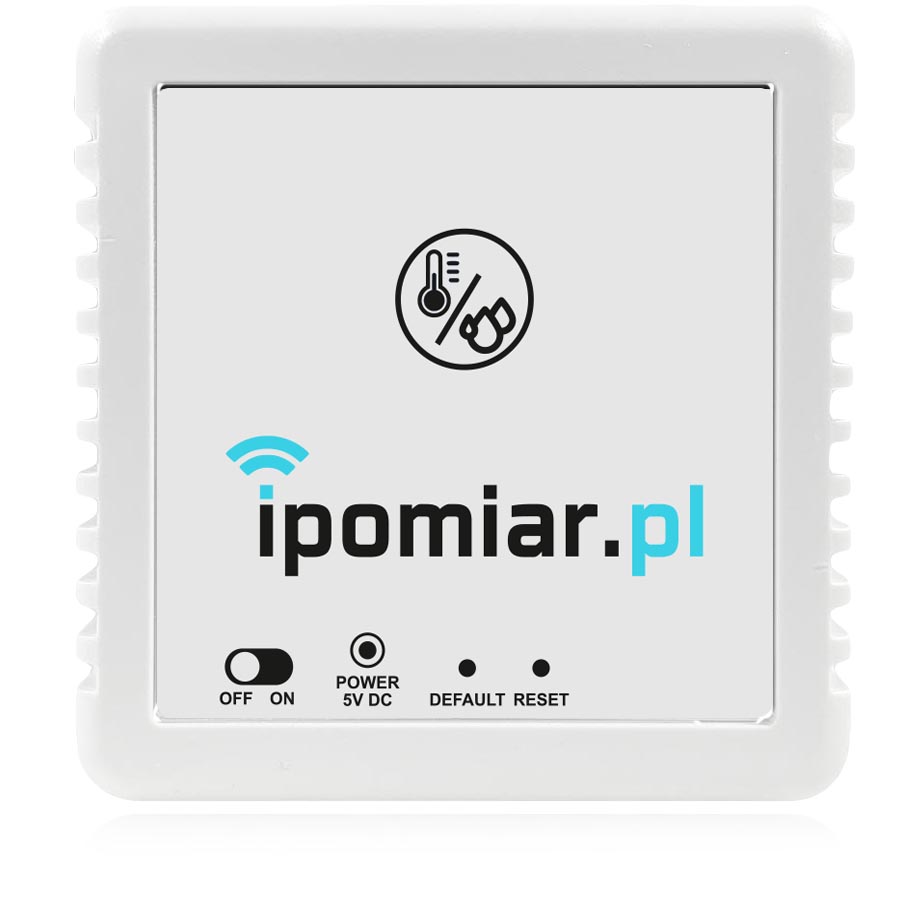

RTH1 mini Wi-Fi temperature and humidity recorder

RT1 mini is a wireless digital temperature and humidity meter/recorder with an internal sensor, which communicates with the Internet using Wi-Fi wireless communication. The device allows you to view and record measured temperature parameters and access the data on the fly using a mobile application and the iPomiar.pl platform. Encrypted measurement data is sent to an individual customer account, which can be accessed from anywhere in the world.

APPLICATION

Offline mode

The offline function consists in saving measurements to the internal memory of the logger. The function starts automatically when Wi-Fi network coverage is lost (router failure, power outage, etc.). When network access is restored, the device automatically transfers data from the internal memory (measurements from the period of network unavailability) to the measurement cloud to the user's account.

	Internet connection	No connection to the internet
Mains powersupply	Recording to the cloud measurement data are sent to the server. Power supply from power supply constant source of power.	Write to internal memory device works offline. Power supply permanent source ofpower.
No power supply	Recording to the cloud measurement data are uploaded to the server. Battery power supply dual power supply - up to 48 hours of operation on battery backup.	Recordingto internal memory device works offline. Battery power supply dual power supply - up to 48 hours of operation on a backup battery.

Dual power supply

The recorder is equipped with two power sources - mains power ( 230V/5V power adapter ) and an emergency battery. In case of mains power failure, the device uses the built-in battery which allows it to work for two days (sampling every 15 min).

Remote updates

The function allows you to remotely upload any updates and take remote maintenance actions. A device connection to Internet is required.

Built-in battery charger

The charger allows automatic charging of the built-in battery or periodic charging when the device is used with battery power. The set includes 230V/5V 1A AC adapter with POWER-JACK connector, thanks to which the charging process is fast (battery charging time approx.1 h) and very convenient.

Technical data

Packages

With the Premium package service, it is possible to archive measurement data up to 50000 entries. Measurement data in this package are stored for the entire period of subscription. The Free package allows you to store up to 100 measurement entries for a period of 30 days. The price of Premium Package includes subscription for one device.

How to start iPomiar device?

Short instruction on how to start up iPomiar.pl series device . In the video as a demonstration we used a proven battery-powered WiFi RT1 temperature logger. Thanks to the economic mode of energy consumption, the device is able to work for a period of 6 months on a single battery charge. The WiFi RT1 temperature logger sends data to the server in encrypted form and only users logging in with individual accounts have access to the data.

How the iPomiar.pl system works

Using the service, it is possible to collect data from devices connected to the Internet. Access to data and product configuration is possible using a web browser or a dedicated mobile application. In addition, with iPomiar.pl it is possible to generate reports that illustrate the collected data in a simple and accessible way using graphs and tables. A feature that distinguishes the iPomiar.pl platform is the direct connection of each sensor to a Wi-Fi network without the need for intermediate base stations - as is the case with Bluetooth communication.

iPomiar.pl is a platform thanks to which it is possible to supervise online and securely collect data from various types of measuring devices. Access to data and product configuration is available via a web browser from anywhere in the world.

Data encryption

All data in the iPomiar.pl system is encrypted and secured. Each device has its own unique ID number available to the user, based on which it is registered in the system.

Application for mobile devices

The free application for mobile devices allows quick access to the data sent by the devices. With the app, the user can also register new devices and manage those already present in the system. When the upper and lower alarms are exceeded, push notifications appear through the app on the android phone, and in the customer panel, exceeding the range is signaled by changing the color to red or blue. The device also measures the battery level and, analogous to the temperature alarm, informs the user of low battery status. In addition, in case of loss of network connectivity (router failure), a red light inside the device signals the error.

ON-LINE supervision

iPomiar.pl is an online platform that collects data sent by Wi-Fi sensors, using which it is possible to continuously monitor devices connected to the system. Each sensor can be monitored and managed through an online panel or a phone app. The user can use a single app to collectively manage all devices from anywhere in the world.

Adashboard that collects data from different sensors allows aggregatesupervision of different devices.

Data logging

iPomiar devices send data to individual user accounts. This data is stored on servers and archived. Archived measurements can be accessed at all times, with the period and amount of account space and data recording time determined by the customer.

Reports

The platform allows you to generate reports remotely using a browser or mobile application. The user determines from which period the data is to be retrieved and in what form the report is to be generated.

View of report settings in iPomiar.pl platform

Graphs and tables with data

Thanks to an extensive user panel, it is possible to analyze measurement data presented in the form of graphs or tables. In addition, it is possible to generate reports from a specific time range.

Chart of stored measurement data.
